USV
SOLUTIONS

SIREHNA designs and supplies a range of unmanned surface Vehicle specificaly design for remotely operated or in full autonomy missions that are recognised as performing and cost effective.

SIREHNA's range of USV comes in different sizes, hull materials and a variety of sensors depending on the type of operations or missions.

SIREHNA involvement in several navy and European research projects, is a proof of quality and recognition on the USV market.

The USV's products range goes from USV's automation kit to full operational unmanned vehicles.

  • Automation kit product (adaptable to any kind of platform)

  • USV product (Harbor, Offshore, Protection and surveillance, Interception, Bathymetric, target)

  • Service and system integration

  • Manned, Unmanned or remote controlled vehicles

AUTOMATION DRONE
KIT

Sirehna has developped an automation/drone kit adaptable to any kind of platform and propulsion in order to turn any craft in an USV.

  • Adapted to a great variety of missions and tasks

  • Adaptable to any kind of platform

  • Adaptable to any kind of propulsion

  • Full package (sensors, communication unit...)
  • Communication systems depending on range (PRU, wifi, S-band, 4G, VSAT)
  • Easy to integrate

  • Interoperable with payload's remote operation systems

  • Dual capability of the asset: manned or unmanned

  • Replication of the bridge including communication means (Shore center)

DESIGN
OFFICE

SIREHNA expertise allow us to design, study and offer custom made vessels.

  • Strong expertise in hydrodynamics & numerical simulation

  • Complete study of out fitting, stability and IMO weather criteria to the construction and the delivery

  • ‘On shelf’ vessel or custom made based on vessel’s type of operation

  • Turnkey vessels

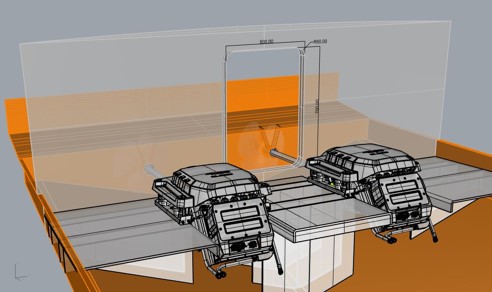

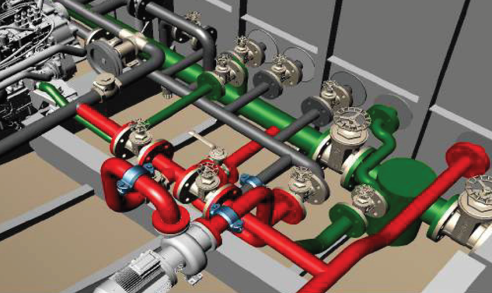

Sirehna design office
Sirehna design office

MISSION
MANAGEMENT
SYSTEM

Sirehna’s mission system allows piloting of active payloads and management of USV, with modular autonomous levels.

System enable the multi-sensors data fusion and display in real time the scalable tactical/operational & environment situation, in compliance with the operational applications

  • Collision detection & obstacle avoidance (COLREG)
  • Control & Communication up to 12NM (UHF)
  • Wave & failure management
  • Launch & Recovery
  • Surface target tracking & identification
  • Course keeping, Heading keeping, track keeping, Station keeping, target tracking, follow ROV modes…
  • Fleet / Pack management

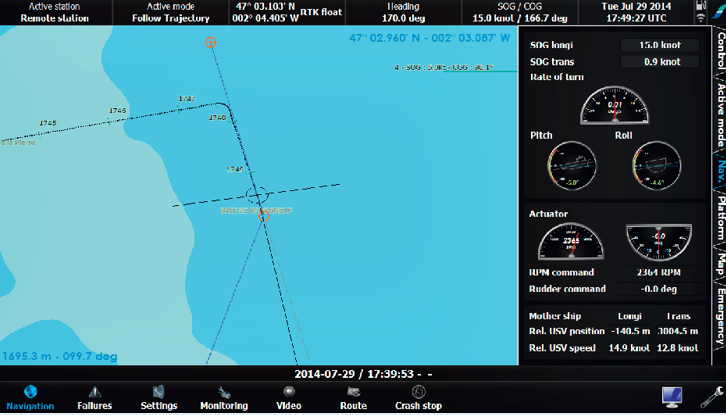

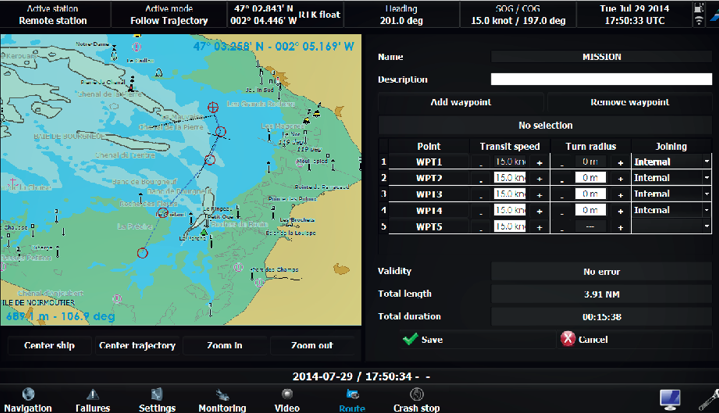

Sirehna USV management system
Sirehna USV management system

USV
SIR850

The SIR850 is a small 8.5m deck hull vessel constructed of Epoxy Plywood with a selection of payloads, used in an interceptor and surveillance role and performing actions with a high degree of autonomy under the supervision of a remote operator.

The epoxy plywood hull provides high lightness and stiffness, improved fatigue resistance and very low maintenance costs. The use of this material also allows for lower energy consumption coupled with electric motors, battery packs and solar panels, making the boat quiet, economical, and limiting the heat conductivity of the various sensors.

The SIR850 can also be fully operated manually, either remotely via a remote control station or a handheld controller.

The SIR850, through the use of non-lethal end-effectors, will ensure the protection of marine installations or large vessels against malicious acts by other vessels.

SIR850 is classified as a MASS (Maritime Autonomous Surface Surveillance System) vessel.

Its state-of-the-art equipment and unrivalled performance will make it an essential security vessel while providing additional HSE support capabilities.

SPECIFICATIONS

PAYLOADS

LOA

Beam:

Draught:

Max Speed:

Autonomy:

Propulsion:

Batteries:

Solar panel

8.50m

2.75m

0.50m

20 Knots

24h @ 8knots

2 x 50KW @ 1800 rpm

3 x deep blue 44KWH

8 m2

GYRO

Camera gyro-stabilized

DAZZLE

Dazzle light

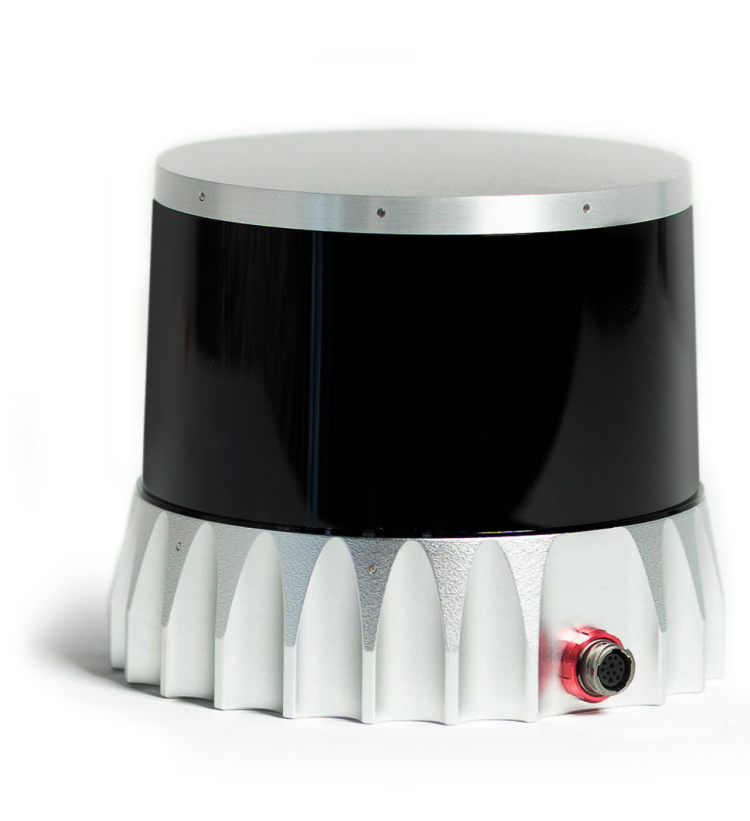

LIDAR OUSTER OS2

Lidar

LRAD

Acoustic gun

4K-Network-Camera-cmos-sensor

6  cameras IR

4K-Network-Camera-cmos-sensor

6 cameras day

USV
SIR930

The SIR930 is a 9.30 m deck-hulled vessel constructed of Epoxy Counterplate and Airex T90 panel with a selection of non lethal payloads, used in a protection and interception role and performing actions with a high degree of autonomy under the supervision of a remote operator.

The SIR930 can be fully controlled, either remotely through a remote control station or a portable controller. Through the use of non-lethal effectors, the USV will ensure the protection of maritime installations or large vessels against malicious acts by other vessels.

Its state-of-the-art equipment and unequalled performance make it an essential security vessel specifically designed under the IMO weather criteria to make it a safe and reliable vessel.

The SIR930 is classified as an autonomous surface ship (MASS).

SPECIFICATIONS

PAYLOADS

LOA

Beam:

Draught:

Max Speed:

Autonomy:

Propulsion:

Generator:

Batteries:

Solar panel

9.30m

3.20m

0.79m

40 Knots

72h @ 12knots

2 x 100KW @ 2500 rpm

1 x 12.5kVA

3 x deep blue 42KWH

10 m2

GYRO

Camera gyro-stabilized

DAZZLE

Dazzle light

LIDAR OUSTER OS2

Lidar

LRAD

Acoustic gun

4K-Network-Camera-cmos-sensor

Fixed camera

NETGUN

Net gun

USV
SIR175

The SIR175 is a 1.75m deck-hulled vessel constructed of Epoxy plywood propelled by 2 fixed electric motors of 2 x 500W & 2 batteries of 36V. It carries all the electronics required for remote controlled navigation, batteries and the payload for short range surveillance operations.

All of its equipment is battery-powered.

Equipped with 4 fixed cameras on top of its mast, the SIR175 integrates Sirehna MOS solution (Maritime Optronic Surveillance System) allowing detection, tracking & geolocation of any potential threat on the surface within a range of .5m up to 200m.

The SIR175 epoxy plywood hull offers a high lightness and stiffness, high fatigue resistance and very low maintenance costs. The use of epoxy plywood also allows a lower energy consumption coupled with electric motors, a battery pack and solar panels, making the SIR175 a low maintenance and silent boat

SPECIFICATIONS

PAYLOADS

LOA

Beam:

Draught:

Weight:

Max Speed:

Autonomy:

Propulsion:

Batteries:

Solar panel

1.75m

0.64m

0.30m

60Kg

6 Knots

Full time

2 x 500W

2 x 12V

2 m2

GYRO

PTZ (Optional)

LIDAR OUSTER OS2

Lidar (optional)

antenne-gps-active-gpa017

GPS

4K-Network-Camera-cmos-sensor

Fixed camera

REMORINA

The Remorina is a 8m unmanned surface vehicle, in the form of a semi-rigid boat. This USV is equipped with an advanced piloting system including, in particular, obstacle avoidance algorithms.

The Remorina can be fully controlled, either remotely through a remote control station or a portable controller. Equipped with a radar and a video camera, this SIREHNA's USV can be used for surveillance and reconnaissance missions.

The Remorina is the perfect platform to demonstrate and integrate new technology such as advanced cameras, sensors, non-lethal effectors or systems & solutions (Collision Avoidance System, mission systems…)

SPECIFICATIONS

PAYLOADS

LOA

Beam:

Draught:

Max Speed:

Autonomy:

Propulsion:

Weight:

8.15m

2.70m

0.64m

38.5 Knots

8h @ 25knots

1 x 270HP

< 3000 Kg

GYRO

Camera gyro-stabilized

DAZZLE

Searchlight/Dazzle light

LRAD

Acoustic gun

4K-Network-Camera-cmos-sensor

Fixed camera
